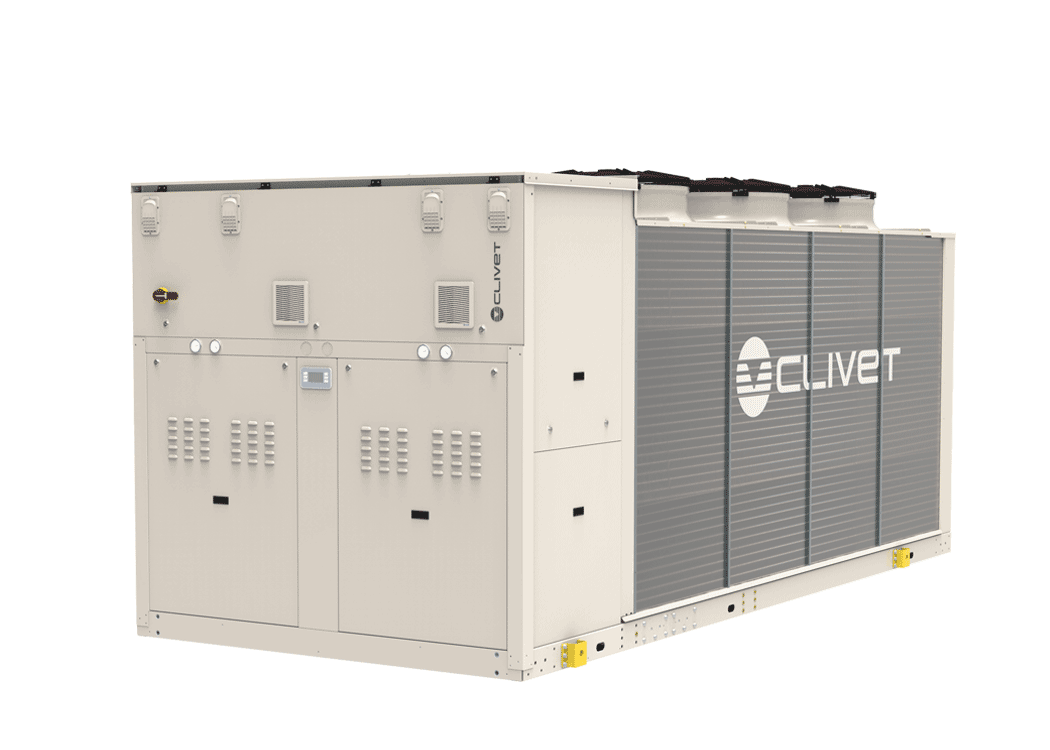

Air cooled Liquid chiller

ELFOEnergy Magnum - WSAT-XEM 50.4÷120.4

Air cooled,  Cooling only, Outdoor installation, Capacity from 139 to 354 kW

  • Scroll compressors and phase-cutting fans type
  • High versatility and configurability for small and medium tertiary applications
  • Double independent circuits for high reliability
  • Refrigerant R410A - GWP = 2088
  • High full load and seasonal efficiency (Excellence version), highseasonal efficiency and compact dimensions (Premium version)
  • Domestic hot water up to 58°C, low water temperature down to -8°C
  • Modular operation management, up to 7 units in cascade
  • Integrated hydronic assembly, system tank, partial recovery and total recovery (only for chiller)

Eurovent certified unit

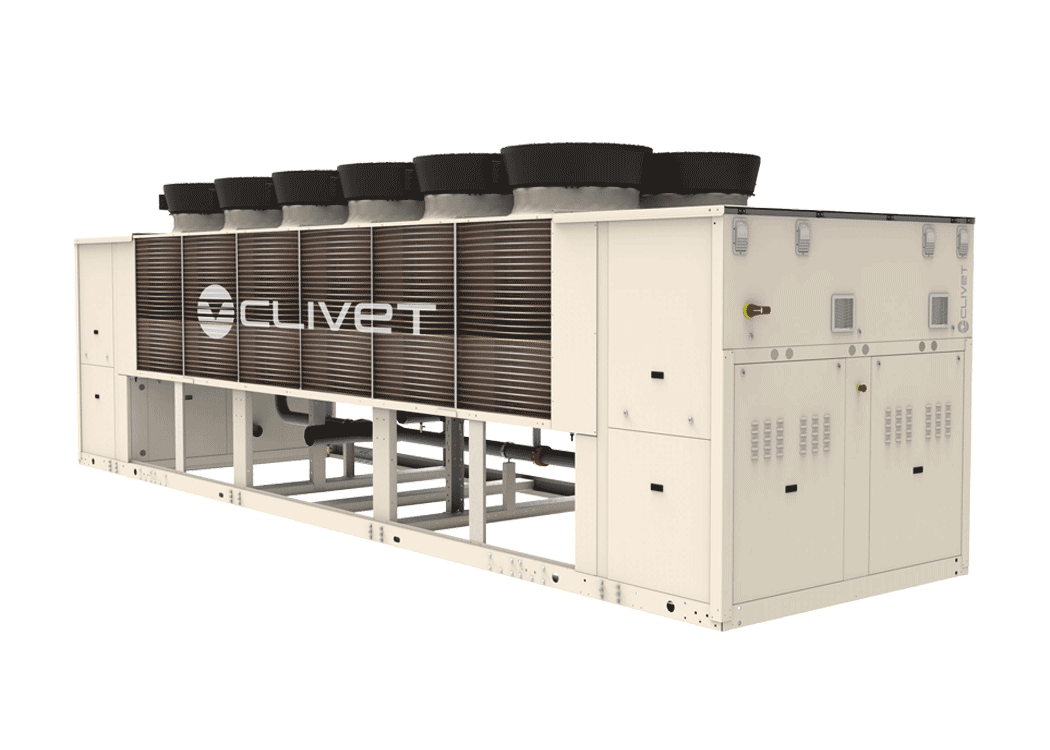

Air cooled Liquid chiller

SPINchiller³ - WSAT-XSC3

Air cooled, Cooling only, Outdoor installation, Capacity from 243 to 1350 kW

  • Scroll compressors and phase-cutting fans type
  • High full load and seasonal efficiency (Excellence version), high seasonal efficiency and compact dimensions (Premium version)
  • Two / Four independent circuits for high reliability
  • Refrigerant R410A - GWP = 2088
  • Low water temperature down to -12°C
  • Domestic hot water up to 53°C, low water temperature down to -12°C
  • Two acoustic configurations
  • Modular operation management, up to 4 units in cascade
  • Integrated hydronic assembly, system tank, heat, partial recovery and total recovery

Eurovent certified unit

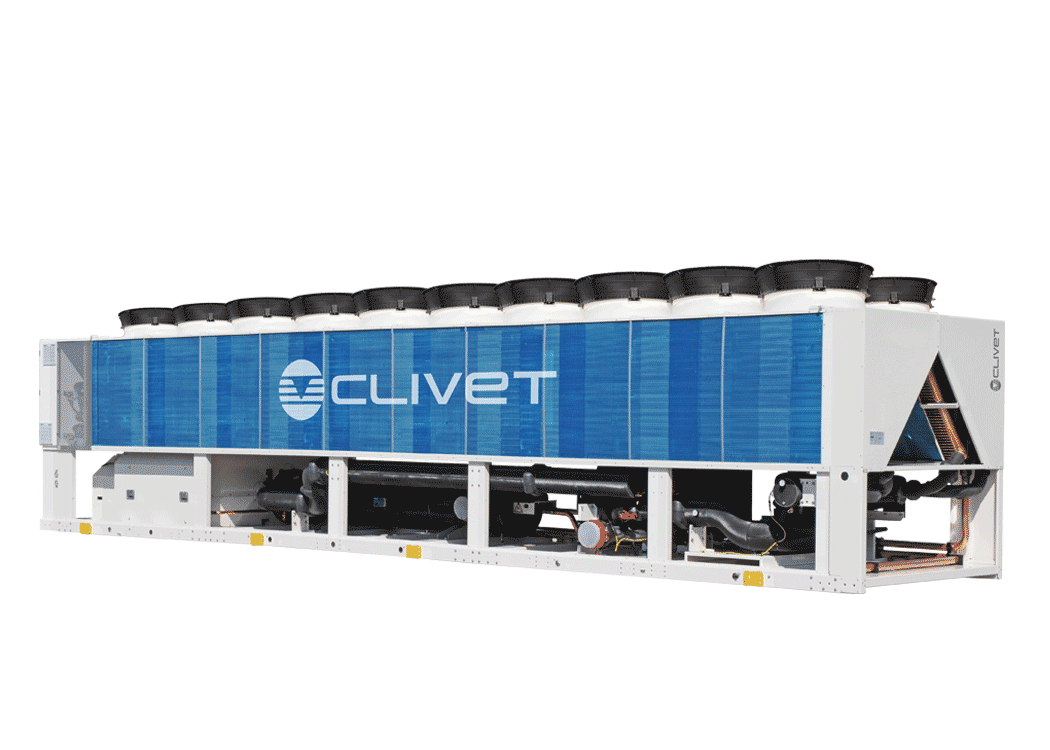

Air cooled Water chiller

SCREWLine³ - WDAT-SL3

Water chiller, Air cooled, Outdoor installation, Capacity from 484 to 1423 kW

  • Screw compressors, copper/aluminium coils and phase-cutting fans type
  • First investment driven and refurbishment applications
  • Two independent circuits for high reliability
  • Refrigerant R134a - GWP=1430
  • High full load efficiency (Excellence version)
  • Operation up to 52°C outdoor air temperature, low water temperature down to -8°C
  • Modular operation management for up to 7 units in cascade
  • Integrated hydronic assembly, partial recovery and total recovery

Eurovent certified unit

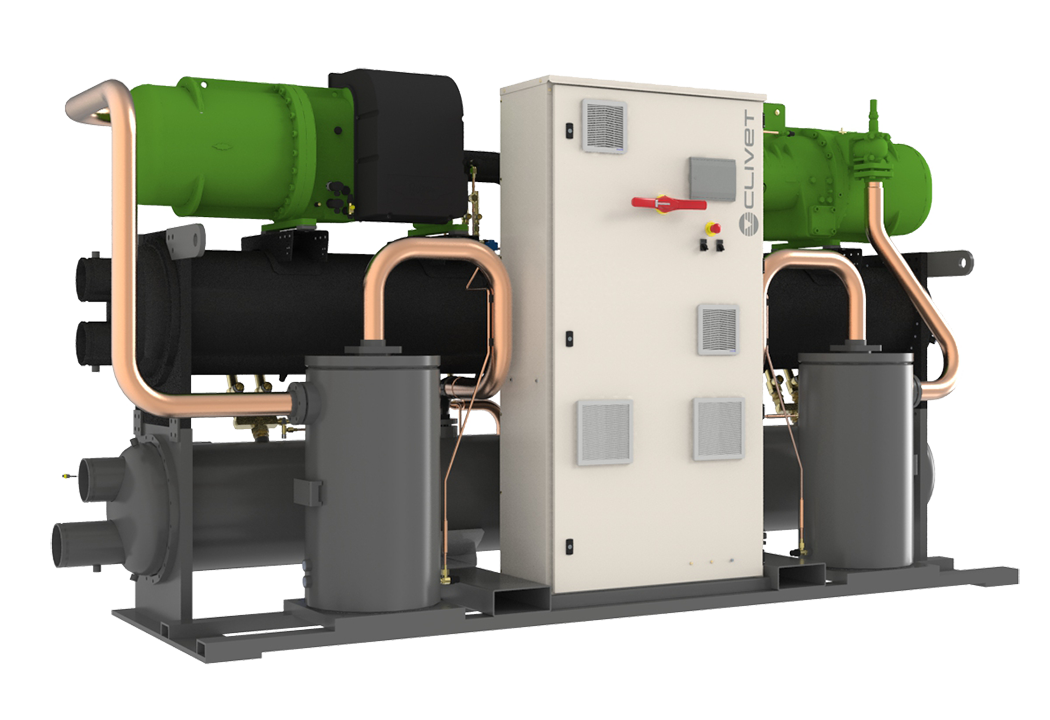

Water cooled Liquid Chiller, Screw chiller

SCREWLine4-i - WDH-iK4

Liquid chiller, Water cooled, Indoor installation, Capacity from 340 to 1520 kW.

  • Screw compressors with inverter technology and spray shell & tube evaporator
  • Low environmental impact solution, with one or two indipendent circuits for high reliability
  • Refrigerant R513A - GWP = 631
  • High seasonal efficiency with SEER values up to 8.60
  • 3 operating modes: Cooling only, Heating only, Operation with water circuit change-over
  • Two acoustic configurations: standard and super-silenced
  • Modular operation management, up to 8 units in cascade
  • Condenser water temperature up to 65°C with high water temperature version (HWT), evaporator water temperature down to -8°C

Eurovent certified chiller

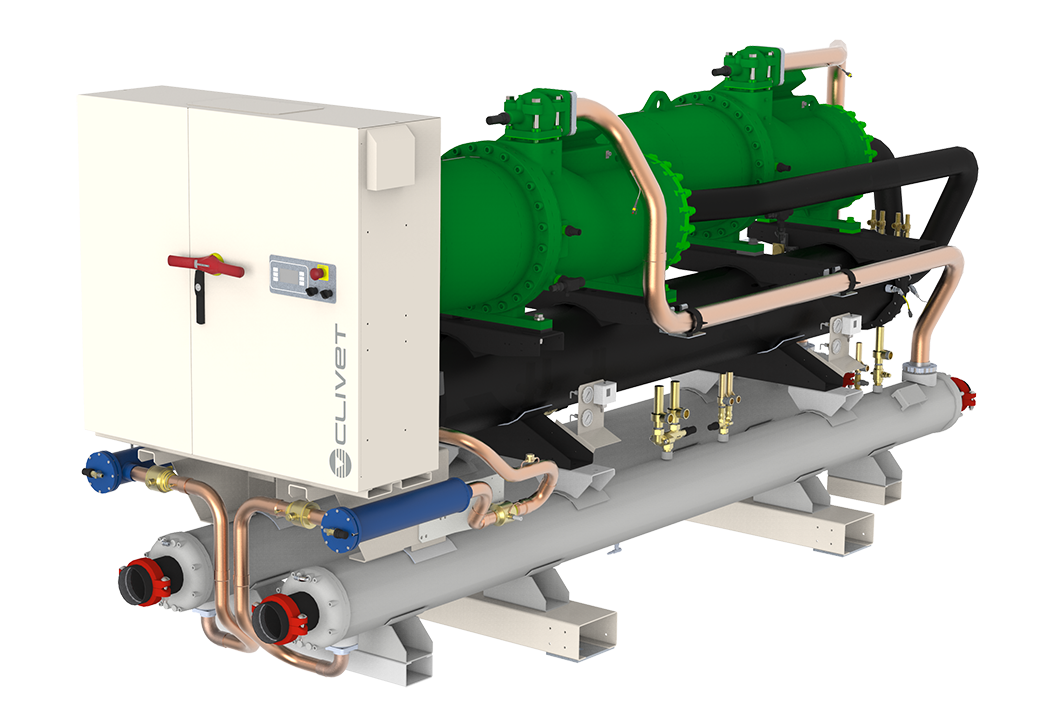

Water cooled Screw Chiller
SCREWLine4 - WDH-SB4

Water chiller, Water cooled, Indoor installation, Capacity from 572 to 1499 kW

  • Double independent circuits for high reliability with screw compressors
  • First investment driven and refurbishment applications
  • Refrigerant R134a - GWP = 1430
  • 3 operating modes: Cooling only, Heating only, Operation with water circuit change-over
  • Two acoustic configurations: standard and super-silenced
  • Modular operation management, up to 7 units in cascade
  • Integrated partial and total recovery
  • Condenser water temperature up to 65°C with heating only version (OHO), evaporator water temperature down to -8°C

Eurovent certified unit

Water cooled Inverter direct-drive centrifugal Chiller

Centrifugal Chiller - WCH-i

Liquid chiller, Water cooled, Indoor installation, Capacity from 878 to 1933 kW

  • Patented horizontal back to back centrifugal compressor with inverter regulation
  • Solution for large commercial and industrial buildings
  • Refrigerant R134a - GWP = 1430
  • Vey high full load and seasonal efficiency with SEER values up to 9.06
  • Falling film evaporator, economizer, oil recovery system
  • Low noise operation the almost total absence of vibrations
  • Compact size: length measure less than 4 meters
  • Condenser water temperature up to 40°C, evaporator water temperature down to 4°C

Eurovent Certified Unit

Water cooled Inverter direct-drive centrifugal Chiller HFO

Centrifugal Chiller HFO - WCH-iZ

Liquid chiller, Water cooled, Indoor installation, Capacity from 808 to 1599 kW

  • Patented horizontal back to back centrifugal compressor with inverter regulation
  • Solution for large commercial and industrial buildings, with quite zero environmental impact
  • Refrigerant R1234ze - GWP = 7
  • Vey high full load and seasonal efficiency with SEER values up to 9.64
  • Falling film evaporator, economizer, oil recovery system
  • Low noise operation the almost total absence of vibrations
  • Compact size: length measure less than 4 meters
  • Condenser water temperature up to 40°C, evaporator water temperature down to 4°C

Eurovent Certified Unit

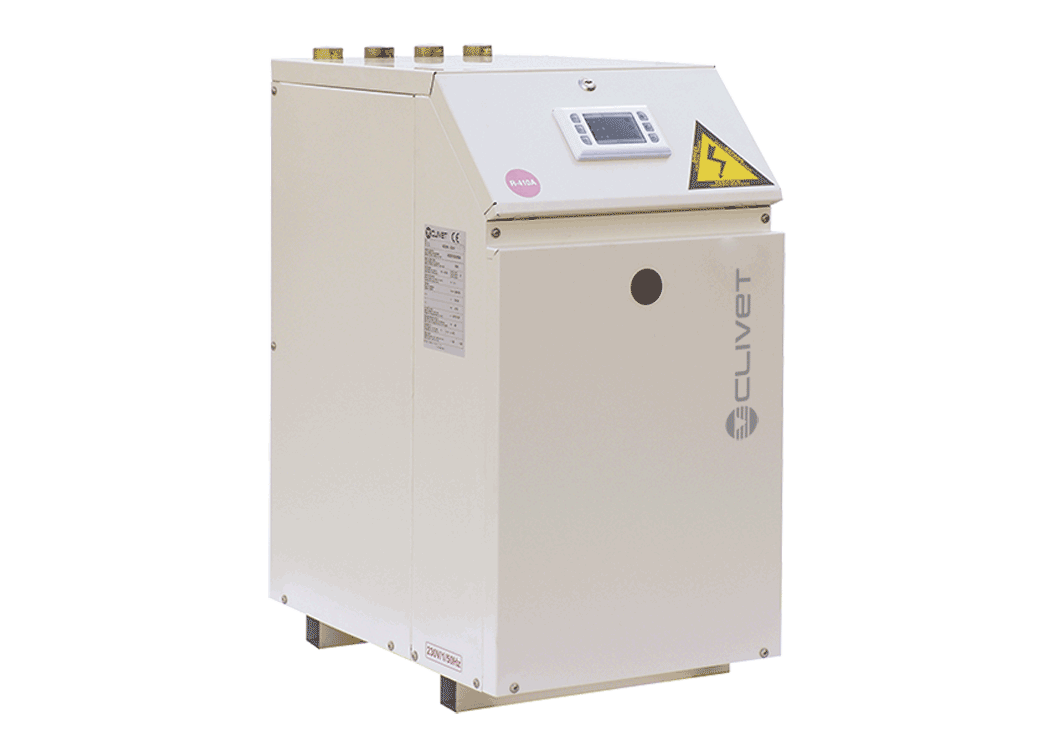

Water cooled reversible heat pump
ELFOEnergy Ground - WSHN-EE

Reversible heat pump, Water cooled, Indoor installation, Capacity from 6,23 to 33,1 kW

  • Scroll compressor and plate heat exchangers
  • First investment driven and refurbishment applications
  • Refrigerant R410A - GWP = 2088
  • Flexible operation: water to water or glycol to water
  • Versatile applications with double set-point and boiler control kits
  • Domestic hot water up to 60°C, low water temperature down to -8°C
  • Energy saving with set-point compensation according to outside enthalpy or air temperature
  • Integrated source and user side hydronic assemblies and three-way valve

Eurovent certified unit

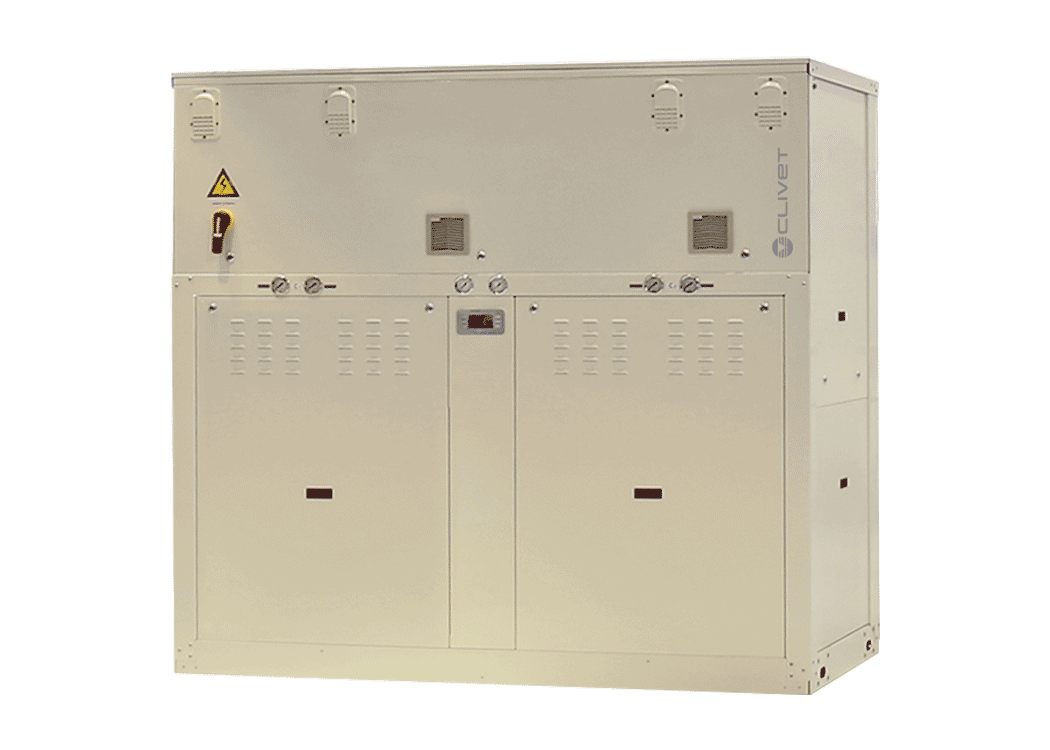

Water cooled Liquid chiller

ELFOEnergy Ground Medium² - WSH-XEE2

Liquid chiller, cooling only, Water cooled, Indoor installation, Capacity from 34,5 to 356 kW

  • Scroll compressors and plate heat exchangers
  • Solution for multi-family and commercial buildings
  • Refrigerant R410A - GWP = 2088
  • Flexible operation: water to water or glycol to water
  • 3 operating modes for chiller units: Cooling only, Heating only, Operation with water circuit change-over
  • Domestic hot water up to 60°C, low water temperature down to -8°C
  • Modular operation management, up to 7 units in cascade
  • Integrated source and user side hydronic assemblies and partial

Eurovent certified unit

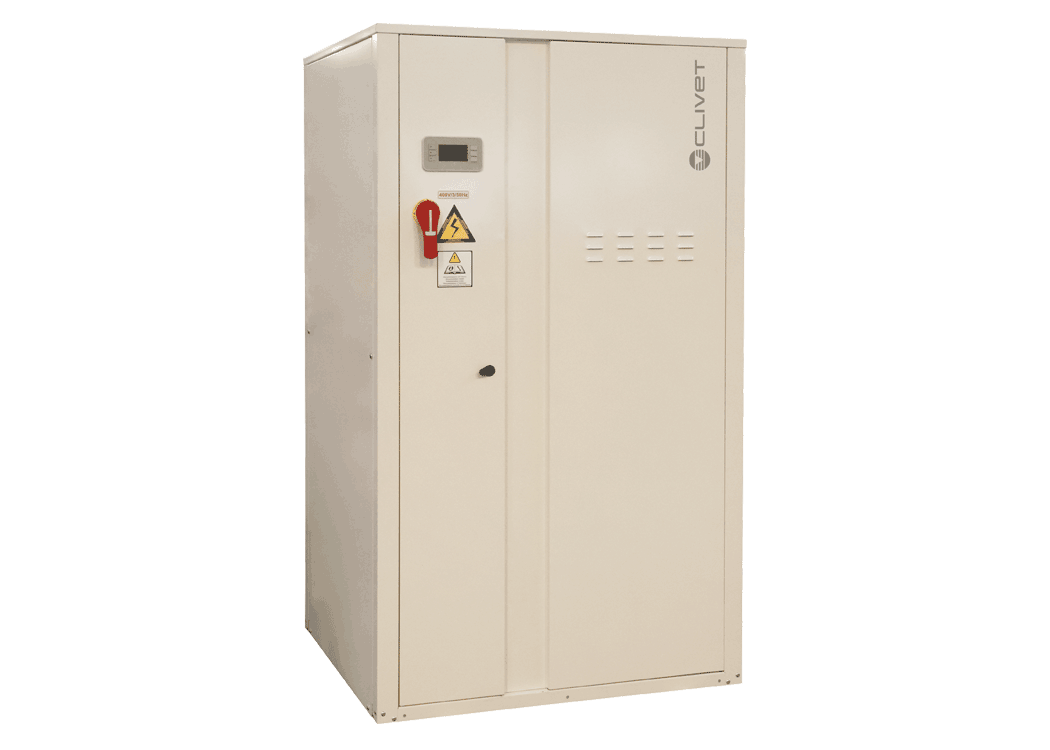

Water cooled Reversible heat pump

ELFOEnergy Ground Medium² HW - WSHH-LEE1

Reversible heat pump, Water cooled, Indoor installation, Capacity from 72,9 to 283 kW

  • Scroll compressors and plate heat exchangers
  • High water temperature solution for residential centralized systems
  • Refrigerant R134a - GWP = 1430
  • Heating only version
  • Hot water up to 78°C
  • Modular operation management, up to 8 units in cascade
  • Integrated source and user side hydronic assemblies

Eurovent certified unit

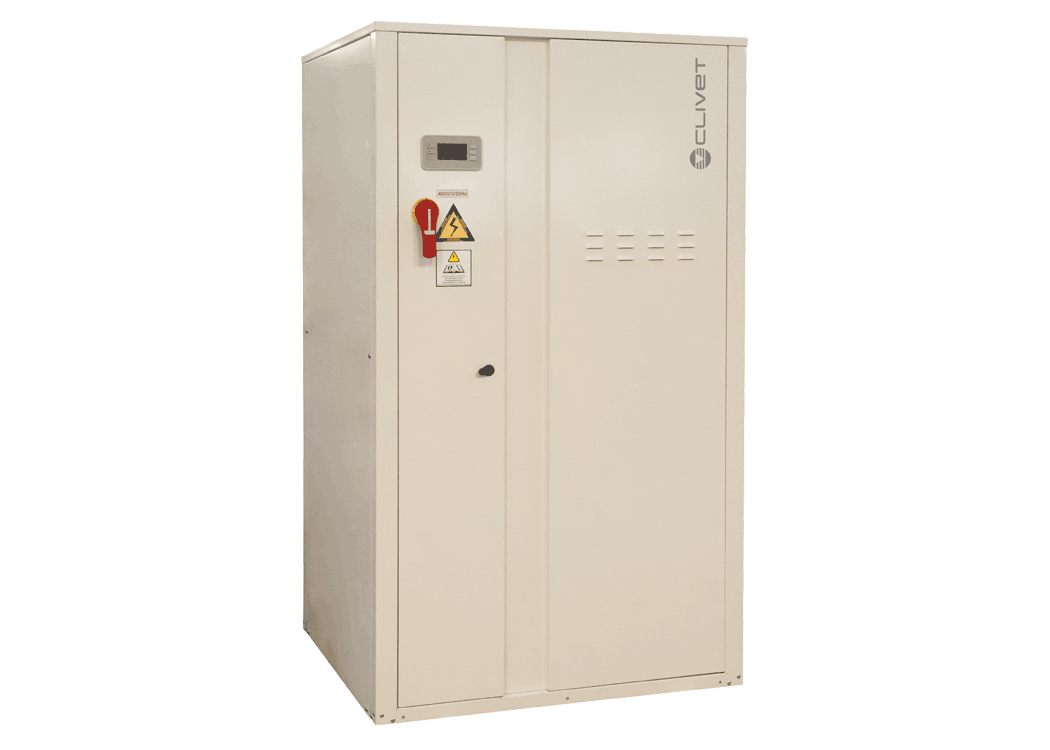

Water cooled Liquid chiller

WSH-XSC3 - SPINchiller³

Cooling only, Water cooled, Indoor installation, Capacity from 211 to 395 kW

  • Double independent circuits for high reliability with scroll compressors and plate heat exchangers
  • Solution for multi-family and commercial buildings
  • Refrigerant R410A - GWP = 2088
  • Flexible operation: water to water or glycol to water
  • 3 operating modes for chiller units: Cooling only, Heating only, Operation with water circuit change-over
  • Domestic hot water up to 60°C, low water temperature down to -8°C
  • Modular operation management, up to 8 units in cascade
  • Integrated source and user side hydronic assemblies and partial recovery

Eurovent certified unit
