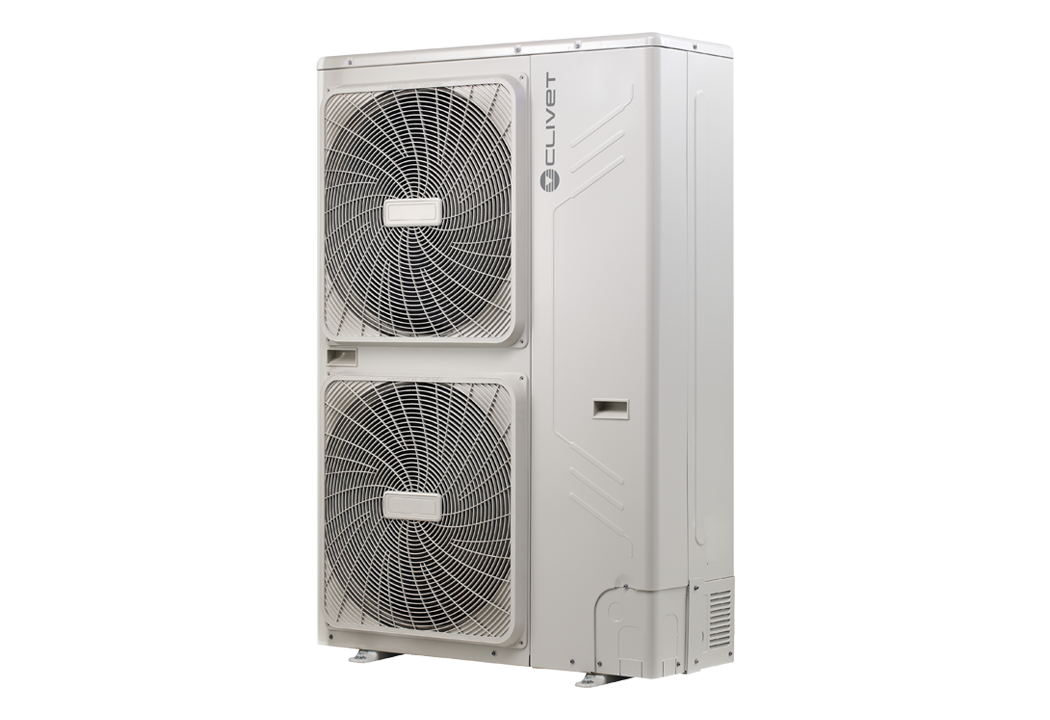

VRF heat pump
CRV6i Series
Main features:
- capacity Range: 20 kW to 33.5 kW;
- three Phase: 380~415V, 3N, 50/60Hz;
- refrigerant Cooling PCB;
- connect up to 20 indoor units;
- all DC inverter compressors and DC fan motors;
- wide operation range: Cooling: -5°C ~ 55°C; Heating: -20°C ~ 24°C;
- total piping length is 150m, the longest piping is 100(actual)/120m (Equivalent), height difference between ODU&IDU is 50m(ODU up)/40m(ODU down), height difference between IDU is 15m.

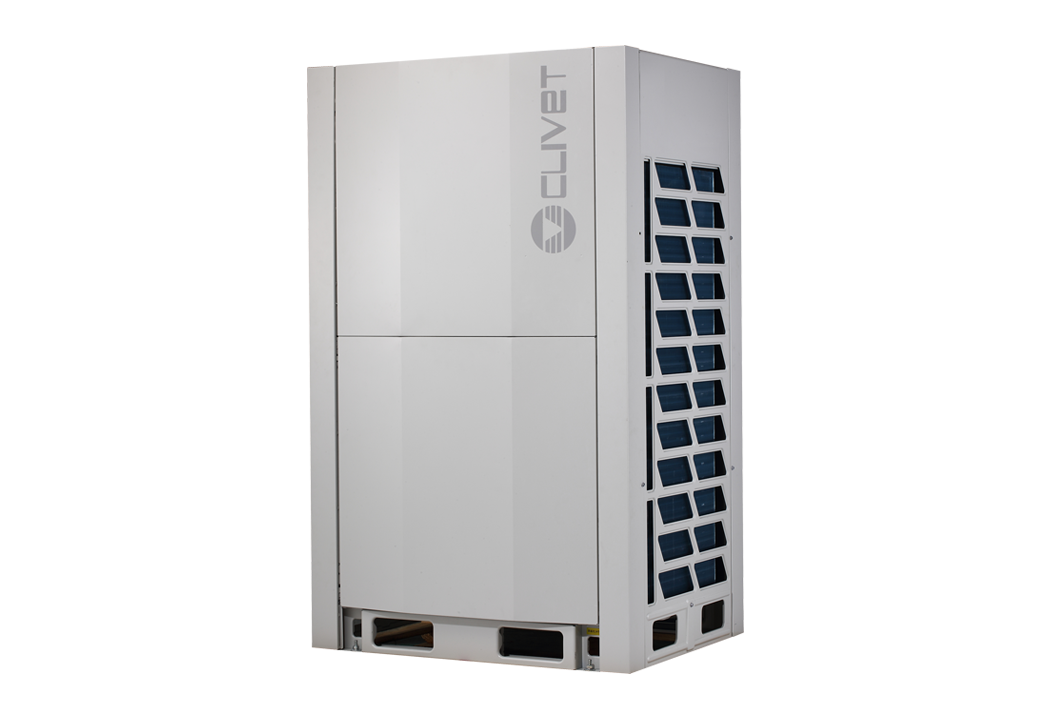

VRF individual heat pump type
CRV6i Series 8-32HP
The plus:
- META: Energy Management System
- EVI Compressor: Enhanced Vapor Injection
- Mr. Doctor: Self-diagnosis
Main features:
- heat pump type, individual type;
- three Phase: 380~415V, 3N, 50/60Hz;
- all DC inverter Scroll Compressors and DC fan motors;
- individual, largest single VRF system capacity to be 32HP;
- floating refrigerant temperature to balance comfort and efficiency.
- heavy anti-corrosion treatment can be customized with UL certification;
- connect up to 64 indoor units;
- wide operation range:cooling: -5°C ~ 54°C, Heating: -25°C ~ 24°C.
- total piping length: 1000m, the longest piping is 175(actual)/200m (Equivalent), height difference between IDU: 30m.
- level difference between IDUs and ODU: ODU above - 90m, ODU below - 110m.

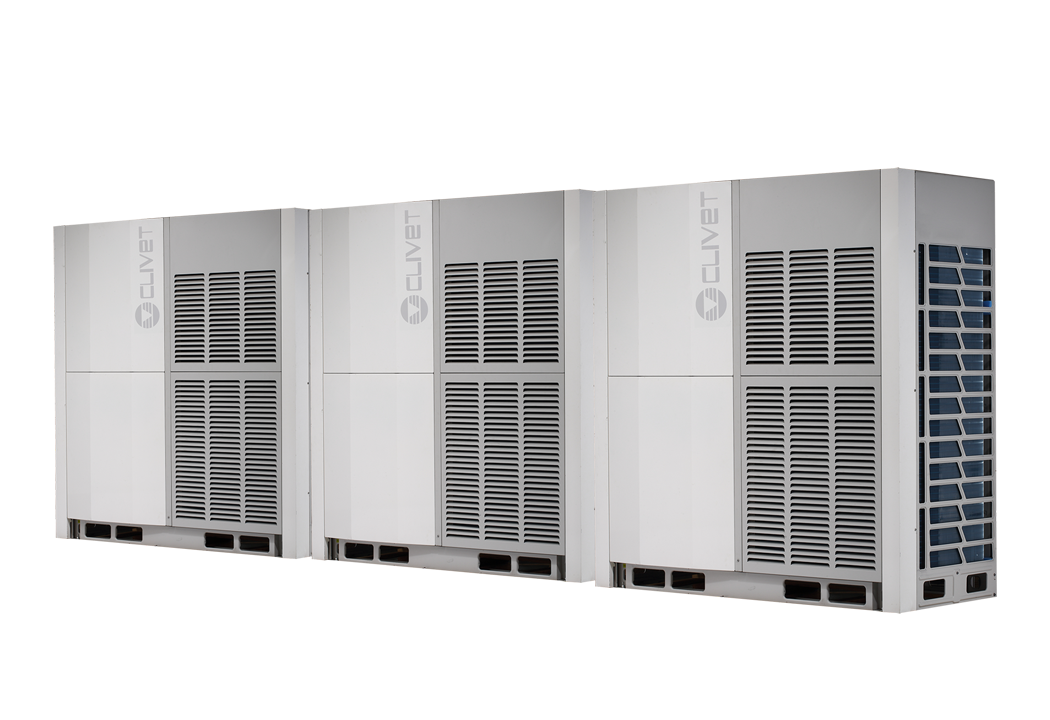

VRF Combinable heat pump type
CRV6 Series 8-96HP
The plus:
- META: Energy Management System
- EVI Compressor: Enhanced Vapor Injection
- Mr. Doctor: Self-diagnosis
Main features:
- Heat pump type, combinable type;
- three Phase: 380~415V, 3N, 50/60Hz;
- all DC inverter Scroll Compressors and DC fan motors;
- combinable, largest single VRF system capacity to be 96 HP;
- floating refrigerant temperature to balance comfort and efficiency;
- heavy anti-corrosion treatment can be customized with UL certification;
- connect up to 64 indoor units;
- wide operation range: Cooling: -5°C ~ 54°C, Heating: : -25°C ~ 24°C;
- total piping length: 1000m, the longest piping is 175(actual)/200m (Equivalent), height difference between IDU: 30m;
- level difference between IDUs and ODU: ODU above - 90m, ODU below - 110m.

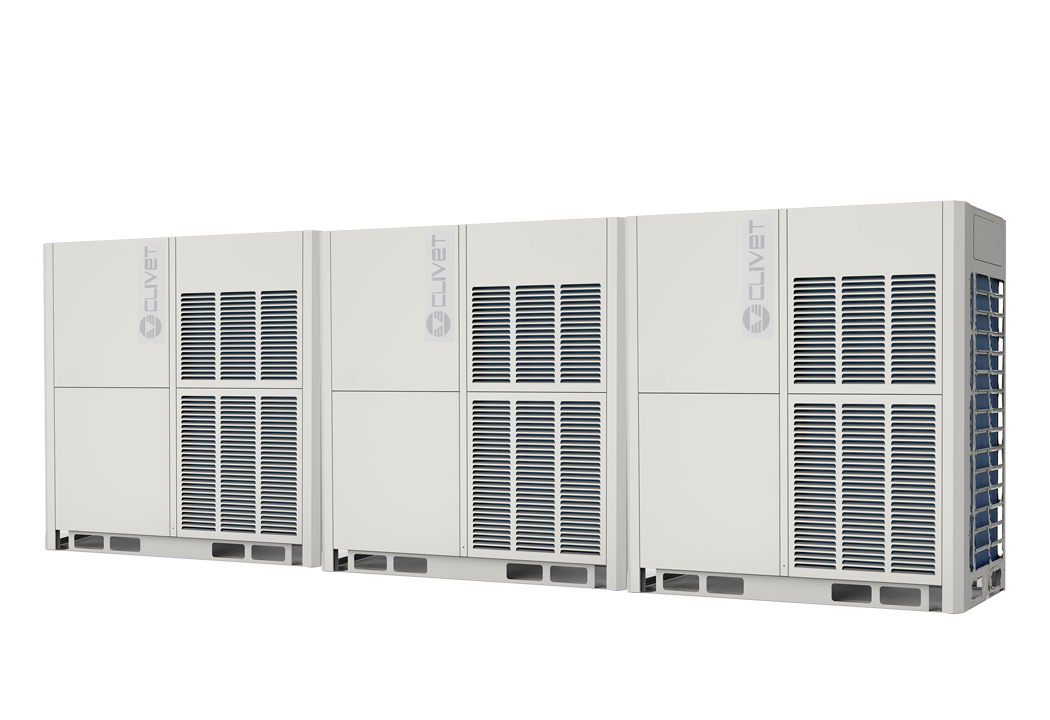

Cooling only, combinable
CRVC Series 8-90HP
The plus:
- META: Energy Management System
- Mr. Doctor: Self-diagnosis
Main features:
- cooling only type, combinable type;
- three Phase: 380~415V, 3N, 50/60Hz;
- use high efficiency DC Twin-Rotary compressor;
- combinable, largest single VRF system capacity to be 90HP;
- floating refrigerant temperature to balance comfort and efficiency;
- connect up to 64 indoor units;
- wide operation range: Cooling: -5°C ~ 55°C;
- total piping length: 1000m, the longest piping is is 175(actual)/ 200m (Equivalent),height difference between IDU: 30m;
- level difference between IDUs and ODU: ODU above - 90m, ODU below - 110m.
