Duct

  • capacity range: 200/300/400/500/600 /800/1000/1200/1400 /1500/1600/1800/2000 CFM;
  • various selection for 2/4 pipe systems;
  • 2, 3 or 4 rows coil for 2-pipe systems;
  • large range of available static pressure: 12/30/50/70/100 Pa.

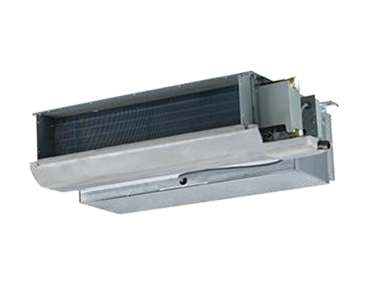

Low & Medium static pressure
duct AC & DC 2 pipe
Low & Medium static pressure
duct AC & DC 4 pipe

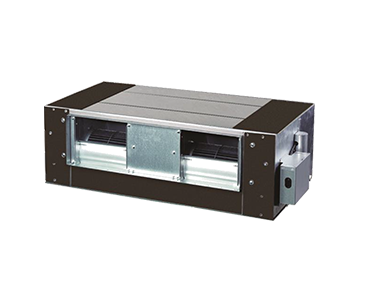

High static pressure
duct AC 2 pipe

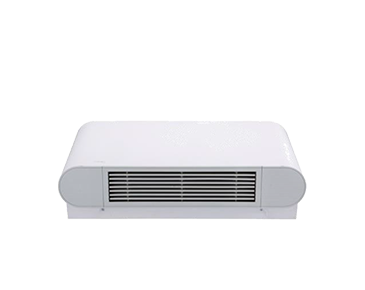

Ceiling & Floor

  • capacity range: 250/300/400/500/600 CFM;
  • multi-directional outlet pipe feature: left\right\rear, to meet the needs of different rooms;
  • built-in 3-way electromagnetic valve.

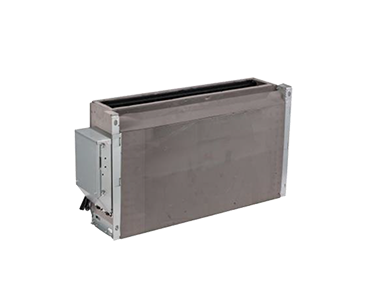

H1 Air return form side
2 pipe / 4 pipe

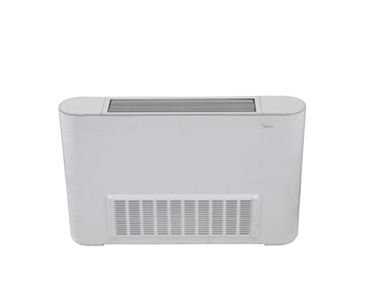

H2 Air return form bottom
2 pipe / 4 pipe

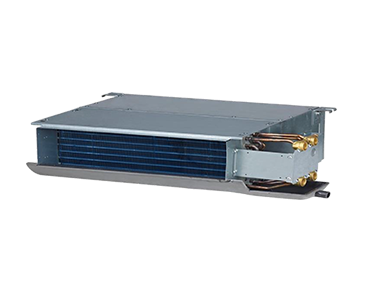

H3 Concealed
2 pipe / 4 pipe

Wall-mounted

  • capacity range: 150/250/300/400/450/500/600 /700/800 CFM;
  • 3 or 4 rows coil for 2nd generation DC unit (new one);
  • available for AC and DC motor;
  • available for 2 /4 pipe.

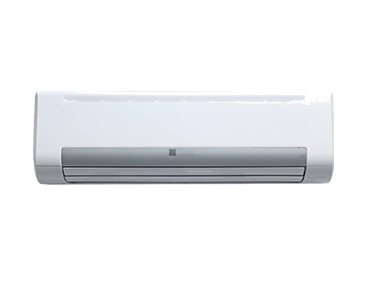

S Type AC & DC
2 pipe

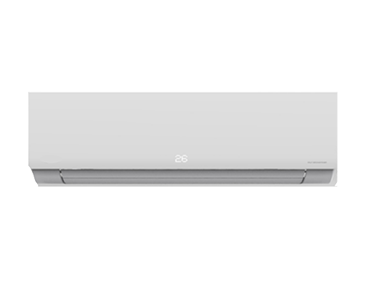

New Panel A & P AC & DC
2 pipe

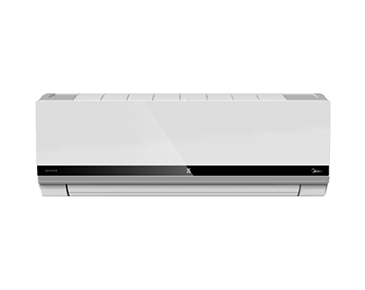

New Panel A & P AC & DC
2 pipe
  • 25mm double skinned PU insulation;
  • G2 plate nylon pre-filter;
  • IP55 fan motor with F class isolation;
  • compact design with basic function can suit most of customer requirement.

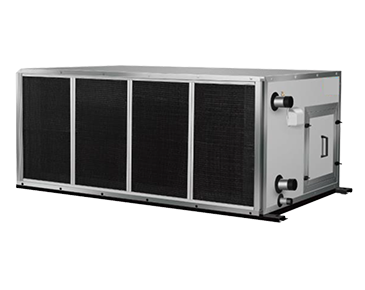

Suspended Type
2000-15000m3/h

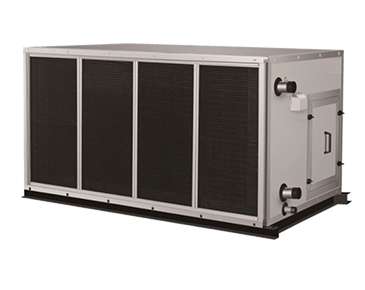

Horizontal Type
5000-40000m3/h

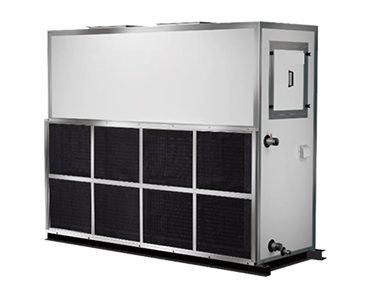

Vertical Type
3000-40000m3/h
